EVA Extruder Pelletizing Line

Rubber Pelletizer/ Pelletizing Equipment/ EVA extrusion Equipment

I. Public Project Condition
1. Electricity: 50HZ ; Voltage: 380V/220V/3P
2. Water demand:
Recycling water:water pressure:~0.45MPa
Water temperature:≤38℃
1). Industrial soft water(non-ionized water ) water temperature ≤38℃
2). Circulating water: for barrels cooling; using soft water(distilled water) to prevent scale
3). External circulating water: for cooling internal circulating water and water trough
4). Water supply suggestion: build pool 25~30m3outside of workshop and pump the water

3. Ambient condition for electric cabinet: Conductive dust free; Temperature:≤38℃
4. The full set equipment is placable on rigid flat ground, without extra base

II. Processing introduction
1. Machine color:main frame:gray cabinet color:computer color
2. Pelletizing craft

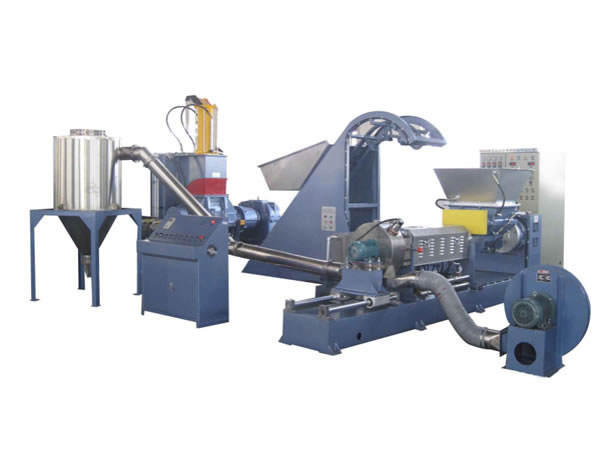

automatic conveyer----Double-awl feeder---∮120 Single screw extruder---Hydraulic Screen Changer—Water cooling dia face hot cutting--- centrifugal dehydrator--- vibrator screen –Silo

III. Technical Parameters
1.Kneader: Customer owned

2.Auto reversing elevator : 1set
1).Feeder material motor power :2.2kw
2). Limit switch limits up and down
3). Elevator hopper is SS material,
4). Convey the material to conical double screw force feeder

3. Double-awl feeder: 1 set
1).Motor power: 11kw, using TECO frequency converter
2). Feeder screw: 2 PCS, Nitrogen & chromate treatment, burnished surface.
3). Body : polishing treatment inner side . hard chromate treatment.
4). Hopper : polishing treatment inner side . hard chromate treatment.

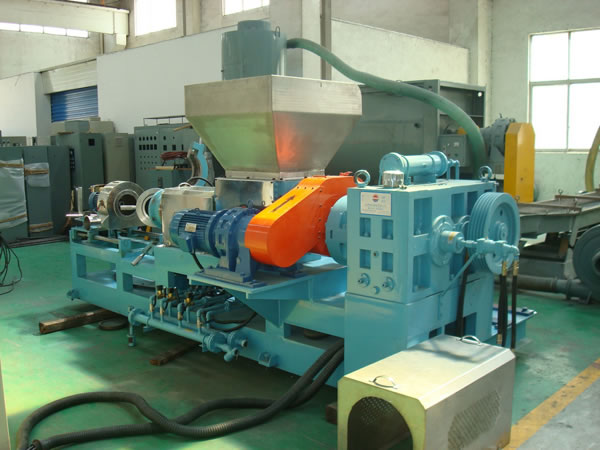

4. KSD-120 extruder
1). Gear box
High torque gear box,gear box shaft apply high strength alloy steel and cementite quenching treatment ,high percision and high hardness transmission stabilization 、low noise 、high efficiency
2). Main motor
a) Y2 type level 4 AC motor
b) Power:75kw
c) main motor rotation speed:1480rpm
d) Adjust Speed Method: adopting "TECO" AC frequency conversion speed

3). Screw
a) Diameter:φ100mm
b) L/D:15:1
c) material is 38CrMoALA Nitrogen treatment, high temperature vacuum quench treatment;hardness:HRC60-64;Screw element is made by the surface forming grinding through machining center.
Applying Cold water cooling for Screw barrel

4). Barrel
a). material is 38CrMoALA Nitrogen treatment, high temperature vacuum quench treatment;hardness:HRC60-64; Screw element is made by the surface forming grinding through machining center.
b). Barrel is air cooling.
c). Barrel has the protective cover.

5). Heating section:adopt: use cast-AL heater
6). Hydraulic pressure automatic screen exchanger:
a) screen exchanger:
(1) Position: fixed between barrel and head
(2) Plate filer automatic screen exchanger,Flow section for circular
(3) Casting copper heater 2 slices.
(4) The double location:Including two pieces of porous plate

b) hydraulic pressure station
(1) Oil circuit system pressure:15Mpa<25Mpa;
(2) Hydraulic pump output volume:4L/min
(3) Motor rated power: 1.5 kw, Rated Speed:1420rpm
(4) Hydraulic Oil:YA-N46
(5) Accumulator nitrogen filled pressure:7Mpa

7). die face hot cutting head:
a) head pressure sensor device;
b) Head melting temperature sensing display device
c) Strand tooling plate: aluminum heater and a set of;
d) Interlock system
(1). intelligent instrument, PID parameter self-regulation, heator broken circuit indication
(2). single screw extruder head is installed with indication of melt pressure and temperature. Melt pressure is interlocked with main frame, over pressure protect.

e) Electric controlling system
(1) 3*380v .50HZ
(2) AC contactor :SIEMENC brand
(3) Main motor air switch: LG brand
(4) Intermediate relay:OMRON brand
(5) Temperature controller:OMRON brand
(6) Other low voltage electrical and button, switch: all use the French Schneider
(7) Electric control cabinet include temperature control system and driving system

f) Die face water-ring hot cutting auxiliary system
(1) Water-ring hot cutting pelletizer:2.2kw, one set;
Adjust Speed Method: adopting "TECO" AC frequency conversion speed
(2) Hot cutting cover: Stainless steel. 1pc
(3) Water pump:one set,power: 5.5kw
(4) Diversion trench: stainless steel material,1PC
(5) Centrifugal dehydrator:one set,4kw
(6) vibrating screen:one set,
(7) dyer silo:one set,including 0.75m3 silo,3kw blower,adoptφ160 soft pipe.

8). Spare parts and tools:
a) input oil seal:1 set
b) internal Hexagon wrench:1 set
c) Asbestos glove:1 pair
d) hot cutting blade:10 pcs
