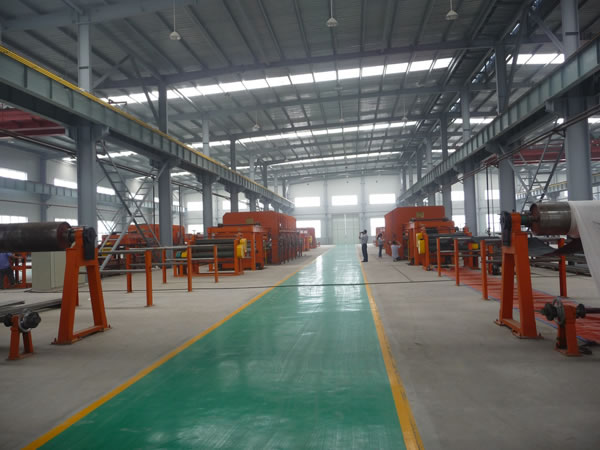

Spindle Bracket
- Spindle NO. 138
- Initial tension of steel wire : 80-250N/piece
- Diameter of steel wire : φ 2.5-13.0mm
- Execute type of initial tension: motor reducer
- Hanging device & NO. : 500kg x 2sets
Tension Station(Constant Tension Device)
- Clamping plate size: 1600 X 400 mm
- Clamping force: 800KN
- Clamping cylinder stroke: φ200×170mm×2 pieces.
- Up & down stroke: φ200×390mm×2 pieces.
- Small oil tank NO. : 134pieces
- Small oil tank stroke: φ18×150mm
- Unit tension of steel wire: 830-3000N/piece
- Pulling cylinder stroke: φ63×160mm
- Hydraulic working pressure: 16Mpa.
- Clamping device, up & down device and small oil tank are equipped with automatic pressure compensation device.
Carding Device
- Distance from ground to bottom of gear : 1250mm
- Carding roller NO.: 5 pieces.
Shaping Cart
- Cooling press plate (Length x Width) : 1600 x 1000 mm
- Diameter of cooling press oil tank : φ500mm
- Stroke of cooling press oil tank: 200mm
- System pressure of cooling press cylinder: 16.3MPa
- Unit pressure of cooling press shaping: MAX. 4.0Mpa (adjustable)
- Speed of big cart: V=7m/min
- Max. diameter of rubber sheet coil on the steel wire: D=φ1500mm
- Max.diameter of rubber sheet coil not on the steel wire: D=φ800mm
- Max. width of cord rubber sheet on the steel wire:: B=1600mm
- Rubber sheet let-off bar size: 80x80xL
- Coiling Max. width of laying cloth: B=1600mm
- Coiling Max.diameter of laying cloth: D=φ400mm
- Size of Laying cloth coiling roller bar : 45×45×L
- Cross direction moving cart ‘s speed : 6m/min
- Unbolt cylinder force: Max. 2 x 31.4KN (adjustable)
- Diameter of unbolt cylinder: φ63mm
- Stroke of unbolt cylinder: 100mm
- Working pressure of unbolt cylinder: 16Mpa.
- Diameter of edge cutting cylinder: φ63mm
- Pulling force of edge cutting cylinder: 2×11.54KN
- Stroke of edge cutting cylinder: 150mm
- System pressure of edge cutting cylinder: 16MPa.
- Fine carding device: φ120×1600mm ×5 pieces
- Supporting(press) roller : φ100×1600mm
- Carding plate: 1600×50×20×5 pieces (with groove)
- Drive: hydraulic motor
- Up let-off device: 1kw x 1 set pros & cons Coiling motor: 0.75kw x 1 set
- Down let-off device : 1kw x 1 set pros & cons Coilling motor: 0.75kw x 1 set
- Down let-off walk: 1kw x 1set pros & cons
- Automatic cut rubber device, auxiliary unbolt cylinder device equipped with press adjustable device .
- Rubber sheet cart electricity move, the mov location can be adjustable.
- Rubber sheet cart and shaping cart equipped with cable .
- Inspection cart : 1 set.
Multiple-Function Pulling Machine
- Max. traction : 70KN
- Traction roller size: φ750×1600mm
- Traction speed (two speed) 5500/10000mm/min
- Stretch roller strke: 500mm
- Max. stretch : 1000mm
- Max. srctch force: 650KN (adjustable)
- Max. clamping force of press plate: 800KN
- Max. width of rubber sheet : 1400mm
- Thickness range of rubber sheet : 2-40mm
- Working pressure of hydraulic system: 16MPa
Repairing Machine
- Total pressure : 4.0MN
- Unit area pressure: 2.8MPa
- Heating plate size: 1600x900x80
- Diameter of piston:: 400mm
- Hydraulic tank NO.: 2 pieces.
- System pressure: 16MPa.
Hydraulic Cutter
- Max. width of cutting : 1400mm
- Max. thickness of cutting : 40mm
- Moving speed of cutting device: 2.5-3m/min
- Working pressure of hydraulic station: 15MPa.
Wind up Device
- Max. diameter of coiling : 3000mm
- Max. width of wind up: 1400mm
- Max. weight of wind up: 10T
- Diameter of woiling roller: φ400mm
- Structure: double wind up roller
Middle Clamping Device & Front Clamping Stretching Device
- Clamping force: 1.0MN
- Clamping stroke: 320mm
- Clamping cylinder diameter: φ200㎜
- Clamping cylinder NO. : 2pieces
- Working pressure of clamping cylinder: 16.0MPa.
- Clamping plate size: 1600x400mm
- Stretching force: 0.8MN
- Stretching stroke: 500mm
- Stretching cylinder diameter: 250mm
- Stretching cylinder NO.: 1 piece
- Working pressure of stretching cylinder: 16.3Mpa
