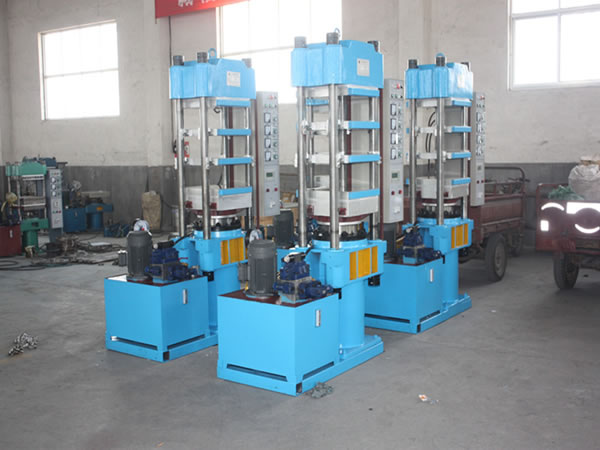

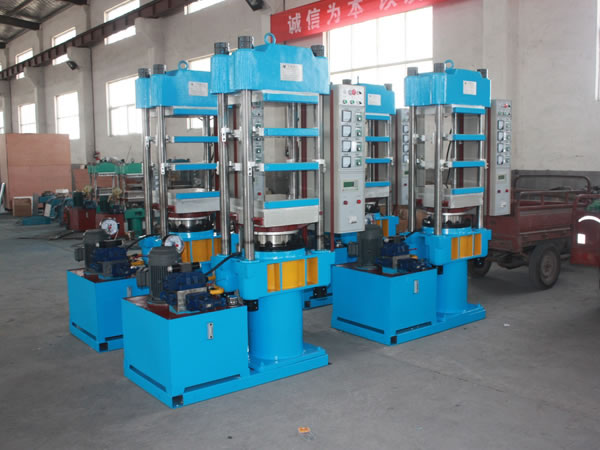

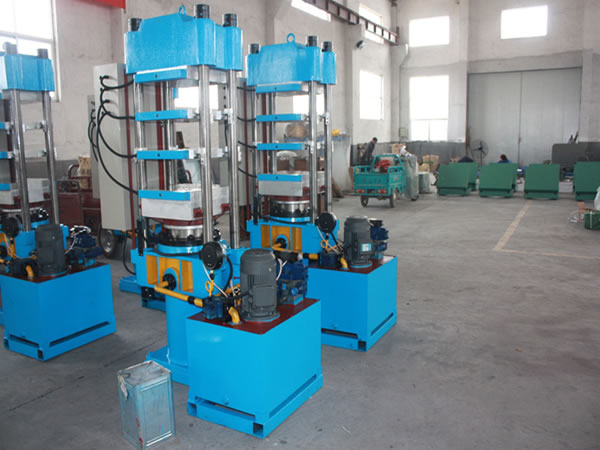

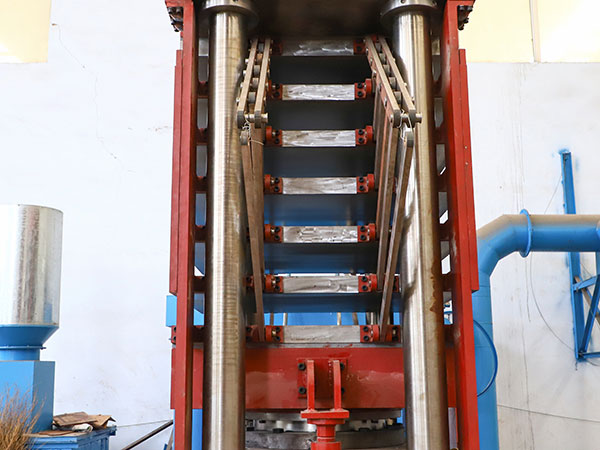

This rubber vulcanizing press column type is a machine used to vulcanize all kinds of rubber and plastic products.
Features

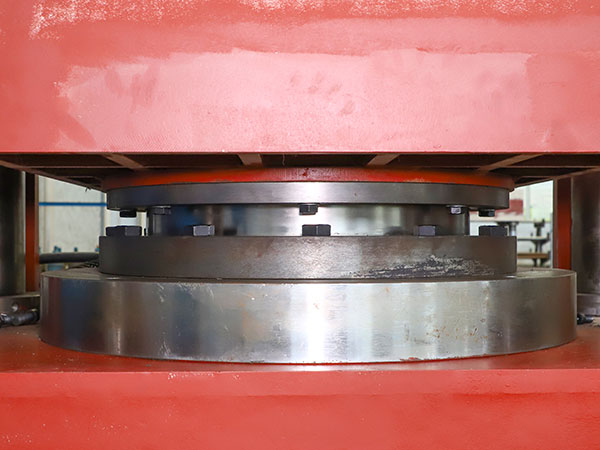

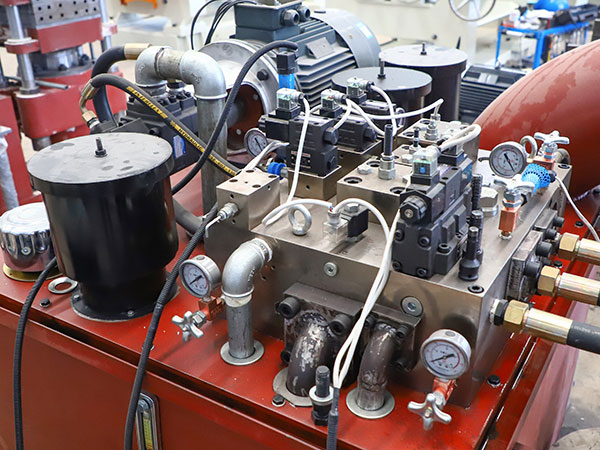

- Being a column structure and downward pressing type, the heating plate opens by the weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
- We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
Technical Parameters
| Type | ||||
| Total Pressure(mn) | 0.25 | 0.50 | 1.00 | 1.60 |
| Plate Size(mm) | 400X400 | 400X400 | 600X600 | 750X850 |
| Daylight(mm) | 125 | 125 | 125 | 125 |
| Daylight No | 2 | 2 | 2 | 2(4) |
| Piston Stroke(mm) | 250 | 250 | 250 | 250(500) |
| Unit Area Pressure(kg/cm2) | 20 | 31 | 28 | 25 |
| Main Motor Power(Kw) | 3 | 2.2 | 2.2 | 3 |
| Overall Dimension(mm) | 1300X800X1500 | 2400X550X1500 | 1401X680X1750 | 1900X950X2028 |
| Weight(Kg) | 1150 | 1300 | 3500 | 6500(7500) |
