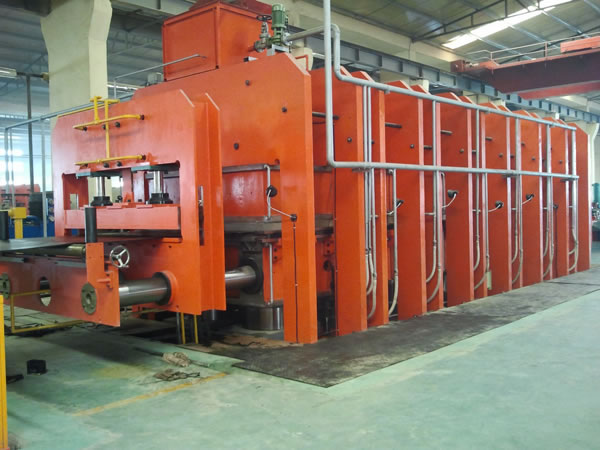

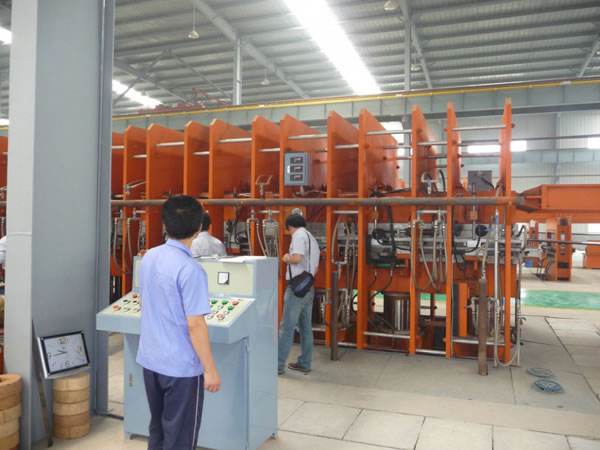

The conveyor belt vulcanizing machine is designed to vulcanize conveyor belts including nylon conveyor belts, fire-proof conveyor belts, wire rope conveyor belts, etc. The vulcanizer is highly automated and compact.
Features
- The main machine is equipped with a special purpose hydraulic unit. Both the hot plates and piston plunger are all made of superior materials.
- PLC control system so as to realize multi program automatic control of the curing process. For example, the temperature of the hot plates can be measured and regulated automatically. This will improve the control level and provide high efficiency during production.
- We can design and manufacture all kinds of non-standard conveyor belts.
Main Technical Parameters
| Version Parameters | |||||||
| Platen size (LXW) (MN) | 1400 x5700 | 1400 x10000 | 1600 X10000 | 1800 x8000 | 1800 x12000 | 2000 x10000 | |
| Total pressure MN | 25.00 | 49.00 | 56.00 | 51.00 | 74.00 | 70.00 | |
| Pressure unit of plate (Mpa) | 3.13 | 3.5 | 3.5 | 3.54 | 3.4 | 3.5 | |
| Ram diameter (mm) | 360 | 450 | 450 | 600 | 500 | 600 | |
| Quantity of ram (mm) | 10 | 20 | 18 | 12 | 18 | 16 | |
| Max. ran stroke (mm) | 400 | 300 | 400 | 600 | 400 | 300 | |
| Clamping force (mm) | 0.72 | 0.90 | 1.20 | 1.20 | 1.20 | 1.20 | |
| Tensioning force (MN) | 0.60 | 0.80 | 1.10 | 1.00 | 1.10 | 1.00 | |
| Steam pressure (Mpa) | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | |
| Pressure of cooling water (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Control form | PLC | PLC | PLC | PLC | PLC | PLC | |
| Overall dimensions | Length | 5700 | 10000 | 1000 | 2700 | 2000 | 10000 |
| Width | 2350 | 2400 | 2660 | 8000 | 12900 | 3100 | |
| Height | 4170 | 3580 | 4120 | 4500 | 3930 | 4400 | |
