Rubber Mixing Mill (Compact/B Type)
  • Rubber Mixing Mill (Compact/B Type)
  • Rubber Mixing Mill (Compact/B Type)

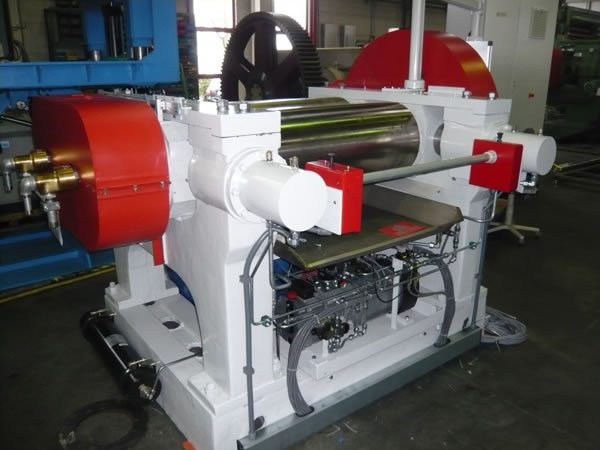

    • The compact/B type rubber mixing mill is a two roll mixing mill with a compact design that is easy to install and move if necessary.
    • The machine is primarily used for plasticizing, mixing, warming and sheeting rubber materials.
    Request a Quote
    Technical Parameters
    Item Type X(S)K-400B X(S)K-450B
    Dia of roll Ø400mm Ø450mm
    Working length of rolls(mm) 1000mm 1200mm
    Max gap(mm) 10mm 15mm
    Roll speed ratio 01:01.3 01:01.3
    Working linear speed of front roll(m/min) 20 23.2
    Capacity per. batch (kg) 20-35 25-50
    Motor power (kw) 45 55
    Overall dimension(mm) 2900×1900×2070 3300×1700×2000
    Weigh(kg) 7500 10500
