Technical Parameters

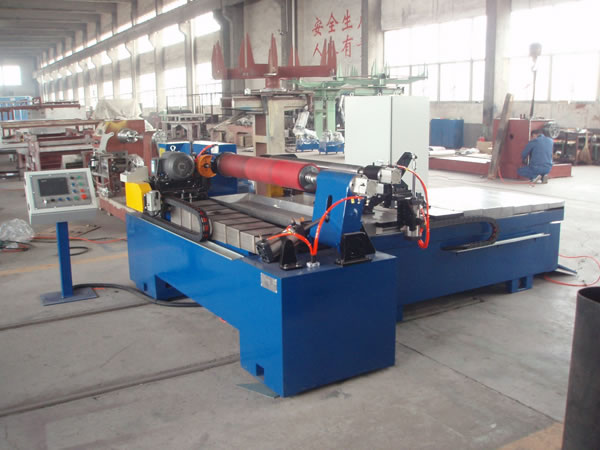

- The V-belt cutting machine is designed for the vertical trimming cut of V-belts and synchronous belts, as well as for the cutting of poly V-belt bobbins before grinding.
- PLC touch screen control.
- Width of bobbin: 1000mm
- Belt lengh: 500-2000mm
- Belts thickness: 3.5-20mm
- Error of cutting width: ±0.1mm
- Cutting angle: 90° ±15’
- Cutting speed: Max:20mm/s
- Bobbin tension: Max:∮80*2*0.8Mpa
- Tension cylinder specifications:∮80*200 Double cylinder
- Cutter material: Alloy disc cutter
- Cutter speed: 0-1400r/min
- Corrective devices: single-phase induction motor
- Longitudinal movement and cutter feed: servo control
- Spindle speed: 50-670RPM frequency control
