Application and Features

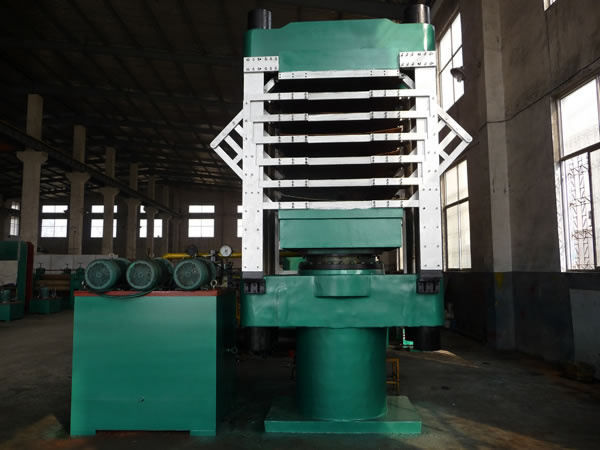

- The EVA sheet foaming press is used in the production of EVA foam slippers, foam sheet, insulation material, sports protective material, life jackets sponges and other thermoset rubber products.
- Small temperature difference, reliable pressure performance, automatically pressure compensation during the curing process
- Main frame uses cast steel, piston is constructed form chilled cast iron, with surface rigidity of HR-70
Technical Parameters
Type | |||
Total Pressure (MN) | 5.0 | 8.0 | 10.0 |
Plate Size (mm) | 1200x1200 | 1400x1500 | 1500x1500 |
Plate Clearance (mm) | 150 | 150 | 150 |
Piston Stroke(mm) | 500 | 800 | 150 |
Plate Unit Pressure(Mpa) | 3.4 | 3.8 | 4.5 |
Main Motor Power(KW) | 18.5 | 26 | 33 |
Dimension (mm) | 2400 x 2100 x 3200 | 2650 x 2400 x 3600 | 2750 x 2400 x 3600 |
Weight (KG) | 22000 | 38000 | 48000 |
