Solid Tire Vulcanizing Press

Mold For Production

Structure: multiple frame type, with two daylights
Cylinder and piston: The press is adopted with one cylinder, made of high quality cast steel. The material of the piston is alloyed chilled cast iron, of which hardness is measured at HRC65-75.
Control system: PLC system, made by Siemens. The actions can be programmed with the PLC controller.
Manual mold sliding device, for each daylight The device contains moving platen and bearings guiding unit. The bottom mold is mounted onto the moving platen, with “T” slots. The moving platen can be driven in and out on the bearings guiding unit by hand. The improved bearing guiding unit makes the operation easy and comfortable.

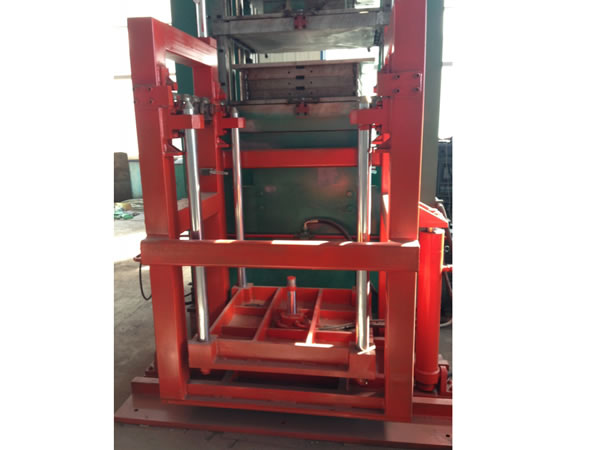

Lifting and automatic mold opening device When the mold opens, the device rises to the bottom daylight. The bottom mold can be pulled out onto the device, then the mold opening cylinders will open the top mold, and eject the cured tire up for removal
Hydraulic unit

Specifications
