(Single Arm Type)
Main Functions: WDS series are suitable for tensile, compression, bending ,cutting shearing and tearing test of rubber, peeling and tearing, plastic, electrical wire and cable, composite, profiled bar, waterproof roll, etc. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise.
Technical Parameters:| Type parameters | ||||||
| Measuring range of testing force (kN) | 0.02 ~ 1 | 0.04 ~ 2 | 0.1 ~ 5 | 0.02 ~ 1 | 0.04 ~ 2 | 0.1 ~ 5 |
| Accuracy of testing force | ±1% of indicated value | |||||
| Resolusion of crosshead displacement Measurement | 0.01 mm | |||||
| Speed range of crossbeam | 0.1 mm /min ~ 500 mm /min, step less speed regulation and arbitrary setting | |||||
| Effective testing space (mm) | 800mm | |||||
| Power supply | 220V±10%, 50Hz | 380V±10%, 50Hz | ||||
| Working environment | 10℃ ~ 30℃ , relative humidity≦80% | |||||
| Main configuration | Alternating servo motor and speed adjustment system, precision photoelectric encoder. | Imported servo motor and speed adjustment system, precision photoelectric encoder. | ||||
| Overall dimension of host machine (mm) | 600×420×1700 | |||||
| Weight(kg) | 300 | |||||

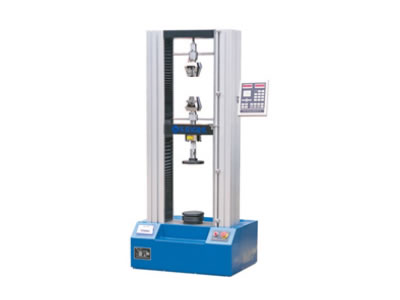

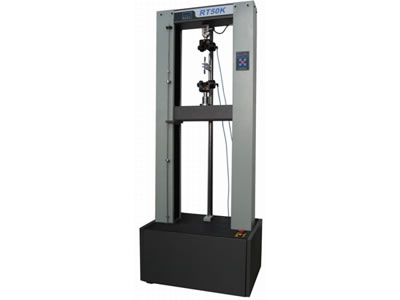

Main Functions: WDS series are suitable for tensile, compression, bending ,cutting shearing and tearing test of rubber, peeling and tearing,plastic, electrical wire and cable, composite, profiled bar, waterproof roll, etc. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise.
Technical Parameters:| Type parameters | ||||
| Measuring range of force (kN) | 0.2 ~ 10 | 0.4 ~ 20 | 0.2 ~ 10 | 0.4 ~ 20 |
| Accuracy of testing force | ±1% of indicated value | |||
| Resolusion of crosshead displacement Measurement | 0.01 mm | |||
| Speed range of crossbeam | 0.1 mm /min ~ 500 mm /min, step less speed regulation and arbitrary setting | |||
| Effective testing space (mm) | 800 | |||
| Power supply | 220V±10%, 50Hz | 380V±10%, 50Hz | ||
| Working environment | 10℃ ~ 30℃ , relative humidity≦80% | |||
| Main configuration | Alternating servo motor and speed adjustment system, precision photoelectric encoder. | Imported servo motor and speed adjustment system, precision photoelectric encoder. | ||
| Overall dimension of host machine (mm) | 740×500×1680 | |||
| Weight (kg) | 450 | |||
(Single Arm Type)
Main Functions: WDW series are suitable for tensile, compression, bending cutting,shearing and tearing test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They may add test metheds or rules according to customers’requirement .They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Technical Parameters:| Type parameters | ||||||
| Measuring range of force (kN) | 0.01 ~ 1 | 0.02 ~ 2 | 0.05 ~ 5 | 0.01 ~ 1 | 0.02 ~ 2 | 0.05 ~ 5 |
| Accuracy of testing force | ±1% | |||||
| Resolusion of testing force | 1/20000 of maximum testing force | |||||
| Relative error of displacement | ±0.5% | |||||
| Resolusion of crosshead displacement measurement | 0.01 mm | |||||
| Speed range of crossbeam | 0.01 mm /min ~ 500 mm /min, step less speed regulation and arbitrary setting | |||||
| Valid testing space (mm) | 800 | |||||
| Power supply | 220V±10%, 50Hz | 380V±10%, 50Hz | ||||
| Working environment | 10℃ ~ 30℃ , relative humidity≦80% | |||||
| Main configuration | Alternating servo motor and speed adjustment system, precision photoelectric encoder. | Imported servo motor and speed adjustment system, precision photoelectric encoder. | ||||
| Overall dimension of host machine (mm) | 600×420×1700 | |||||
| Weight(kg) | 300 | |||||
