Structure Outline

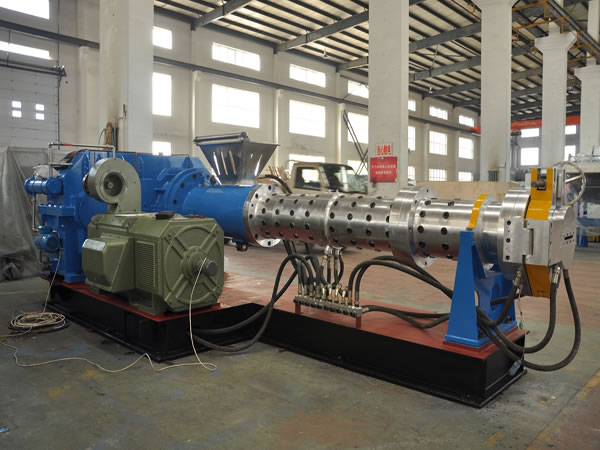

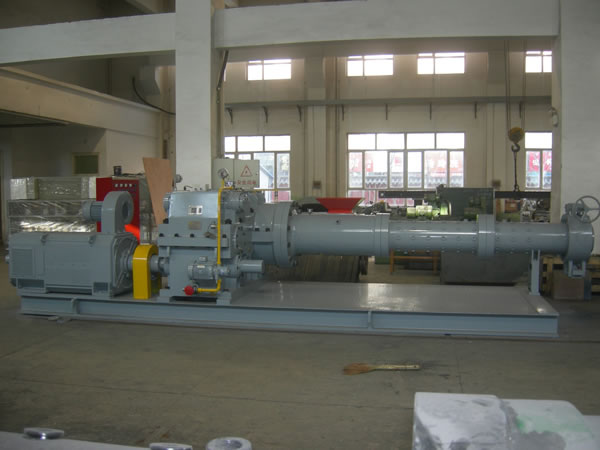

The pin-barrel cold feed rubber extruder is made up of an extruding part for material feeding, a reducer, a motor and speed adjustor and a precise temperature control system.
- The screw is made from 38CrMoAlA nitrogen steel and the surface is nitrogen. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.
- The material of bush is made of 38CrMoAlA nitrogen steel and the surface is nitrogen. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.
- The motor of the equipment is a direct current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.
Technical Parameters
| Spec Item | ||||||||
| Screw dia | ㎜ | 90 | 120 | 150 | 200 | 200 | 250 | |
| L/D ratio | 14:1 | 14:1 | 16:1 | 18:1 | 12:1 | 12:1 | ||
| Max. screw speed | r/min | 60 | 55 | 44 | 33 | 26 | 22.63 | |
| Hopper | ㎜ | 130 ×122 | 164 ×140 | 200 ×165 | 260 ×210 | 260 ×210 | 320 ×246 | |
| Row qty of pin | 8 | 10 | 10 | 12 | 10 | 10 | ||
| Pin qty.of each row | 6 | 6 | 8 | 10 | 10 | 12 | ||
| Model of motor | Z4-200-21 | Z4-200-31 | Z4-250-21 | Z4-280-32 | Z4-280-11 | Z4-280-32 | ||
| Power | kW | 67 | 90 | 185 | 315 | 250 | 315 | |
| Zone of hot water circulation | 4 | 4 | , 4 | 4 | 3 | 4 | ||
| Hot water circulation heating power | kW | 24 | 48 | 48 | 54 | 42 | 48 | |
| Capacity | ㎏/h | 360 | 800-1000 | 1800-2000 | 2100-2600 | 2300 | 3000 | |
| Overall dimensions | L | ㎜ | 2540 | 3996 | 6000 | 7770 | 6250 | 6885 |
| W | ㎜ | 1493 | 1575 | 2600 | 3000 | 3000 | 2400 | |
| H | ㎜ | 1416 | 1760 | 1800 | 2035 | 2035 | 2090 | |
| About weight | t | 4.5 | 6 | 7.25 | 16.6 | 12.6 | ||
