    Rubber Vulcanizing Press (Frame Type)

    Hydaulic Press, Rubber Vulcanizer, Hot Press, Vulcanizing Press, Rubber Curing Press

    • Home
    • Products
    • Rubber Vulcanizing Machine
    • Rubber Vulcanizing Press (Frame Type)
    Rubber Vulcanizing Press (Frame Type)
  • Rubber Vulcanizing Press (Frame Type)
  • Rubber Vulcanizing Press (Frame Type)
  • Rubber Vulcanizing Press (Frame Type)
  • Rubber Vulcanizing Press (Frame Type)

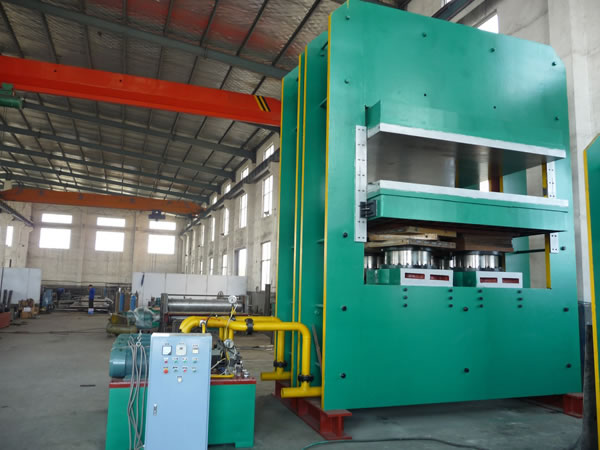

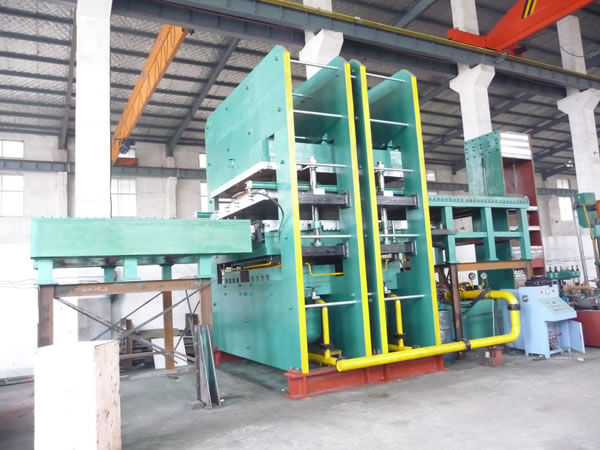

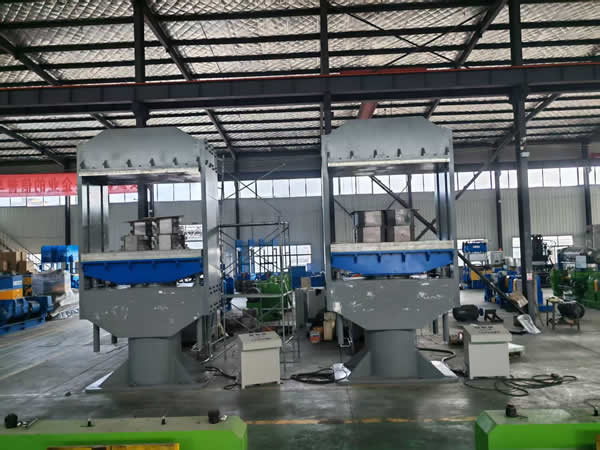

  • The frame type rubber vulcanizing press is a hydraulic press used for the vulcanization of various types of rubber and plastic products.

    Request a Quote
    Features

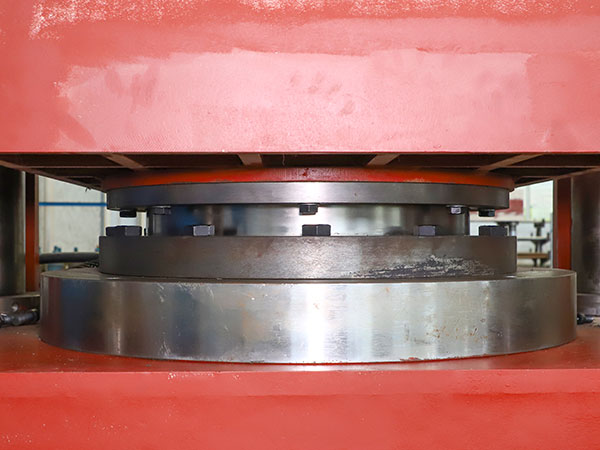

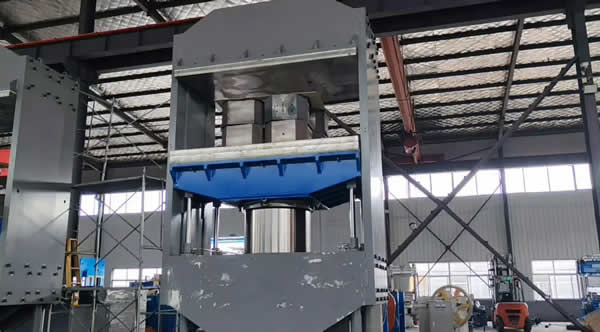

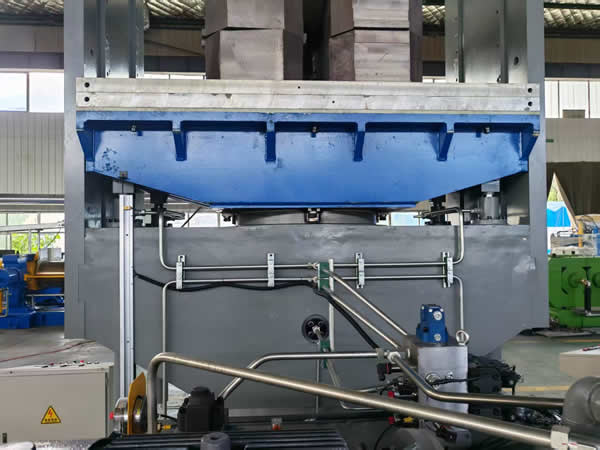

    • The vulcanizing machine features a frame structure with a below pressing form (upwards). The lower platform rises to compress the rubber workpiece, effectively vulcanizing the product.
    • We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
    Technical Parameters
    Type XLB-DQ1200×1200×2 XLB-DQ1300×2000×1 XLB-Q1200×2500×1 XLB-Q1500×2000×1 XLB-Q2000×3000×1 XLB-Q1400×5700×1
    Total pressure(MN) 315t 560t 750t 1000t 1800t 2800t
    Platen size(mm) 1200×1200 1300×2000 1200×2500 1500×2500 2000×3000 1400×5700
    Daylight (mm) 200 400 400 400 400 400
    No of Daylights 2 1 1 1 1 1
    Piston stroke(mm) 400 400 400 400 400 400
    Plate Unit Area pressure(Kg/cm2) 22 21.5 25 33.5 30 35
    Main motor power(KW) 3 8 9.5 11 26 43.5
    Overall dimension(L×W×H) (mm) 1685×1320×2450 2000×1860×2500 2560×1700×2780 2810×1550×3325 2900×3200×2860 2400×5800×3600
    Weight(kg) 9500 17000 20000 24000 66000 110000
