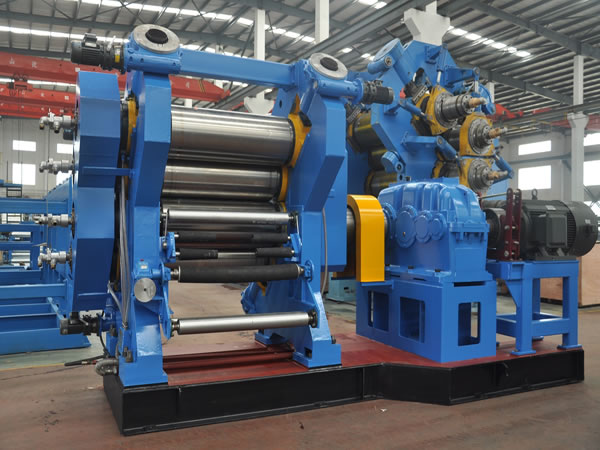

Four-Roll Rubber Calender

Calender Machine/ 4-Roll Calender/ Calendering Machine

Main Technical Parameters:
Model XY-F 630
XY-4I 630
XY-4L630
XY-41120A XY-4 1400 XY-4 1730 XY-4 2130
Roll diameter (mm) 230 360 400 610 710
Roll working length (mm) 630 1120 1400 1730 2130
Roll speed ratio 1:1:1:1 0.73:1:1:0.73 1:1.383:1.383:1 1:1.4:1.4:1 or 1:1.4:1.4:1.4 1:1:1
1:1.48:1
Middle-roll linear speed(m/min) 2.1-21 6.7-20.1 8.8-26.39 8-50 8-50
Adjusting nip product thickness(mm) 0-10 10 10 20 0-20
Min. calendering product thickness(mm) 0.2 0.2 0.2 0.15 0.15
Calendering product width(mm) 100-500 500-920 1200 1500 1900
Motor power(KW) 15 55/18.3 75/25 160 185
Overall dimensions(mm) 3300×940×2350 6000×1620×2490 6500×1970×2740 7010×4105×3730 7650×4560×4080
Weight(kg) ~ 4800 ~ 14650 ~ 18650 ~ 62000 ~ 67000
