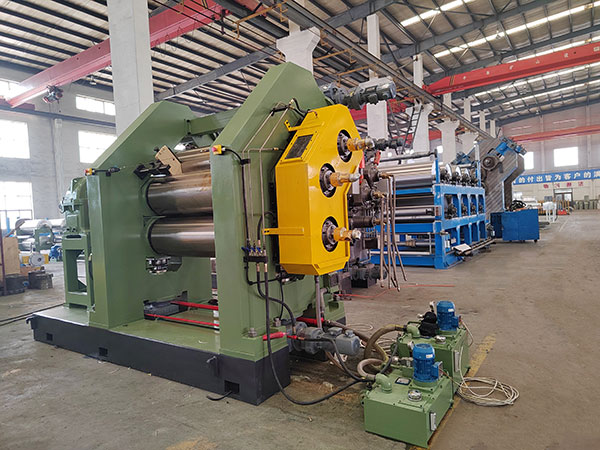

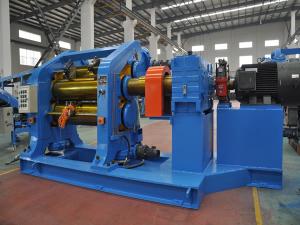

Three-Roll Rubber Calender

Rubber Calender/ Calender Machine/ Roll Calender

Main Technical Parameters:
Model XY-3I 630 XY-3I1120A
XY-31120A
XY-3l1120A
XY-3I 1400 XY-3I 1200
XY-3I 1500
XY-3I 1730 XY-3I 2130
Roll diameter (mm) 230 360 400 450 610 710
Roll working length (mm) 630 1120 1400 1200(1500) 1730 2130
Roll speed ratio 1:1:1
1:1.42:1
1:1:1
0.733:1:1
0.733:1:0.733
1:1:1
1:1.383:1.383
1:1.383:1
1:1:1
1:1.5:1
1:1:1
1:1.4:1
1:1:1
1:1.48:1
Middle-roll linear speed (m/min) 7.97 7.0-21.06 8.8-26.39 8.36-25.08 5.4-54 8-50
Adjusting nip range (mm) 0-7 0-10 0-10 0-6 0-20 0-20
Min. calendering product thickness (mm) 0.2 0.2 0.2 0.15 0.15 0.15
Calendering product width (mm) 100-500 500-920 1200 1100(1400) 1500 1900
Motor power (kw) 7.5 40/13.3 55/18.3 75/25 132 185
Overall dimensions (mm) 2570×740×1500 5550×1640×2120 6500×1500×2440 7120(7420)×2200×2900 7010×3950×3730 7650×4560×4080
Weight (kg) ~ 4200 ~ 12750 ~ 26000 ~ 27000 ~ 52000 ~ 67000
