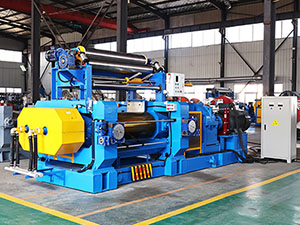

Rubber Mixing Mill (A Type)

Mixing Mill, Rubber Mill, Open Mixing Mill, Two Roll Mill, Rubber Machine

Application:
The A type rubber mixing mill is primarily used in rubber and plastic production factories for natural rubber plasticizing, raw rubber and compound mixing as well as a warm up unit for rubber and rubber sheeting.

Features:

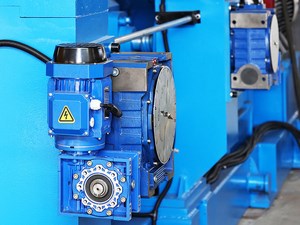

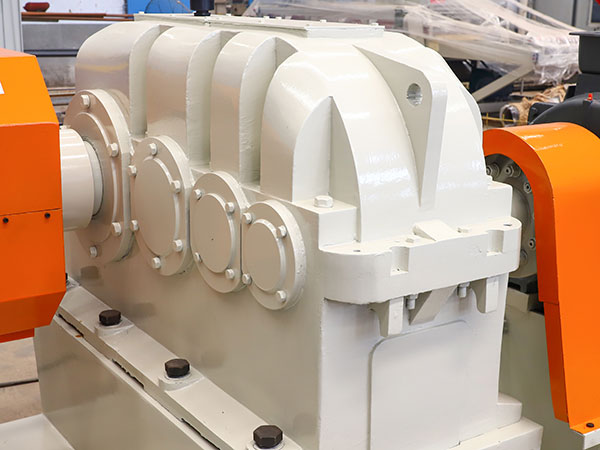

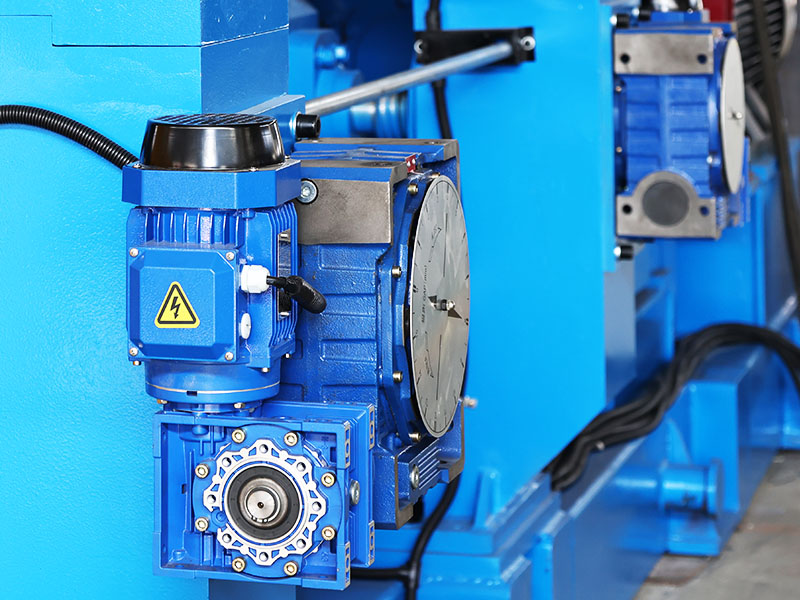

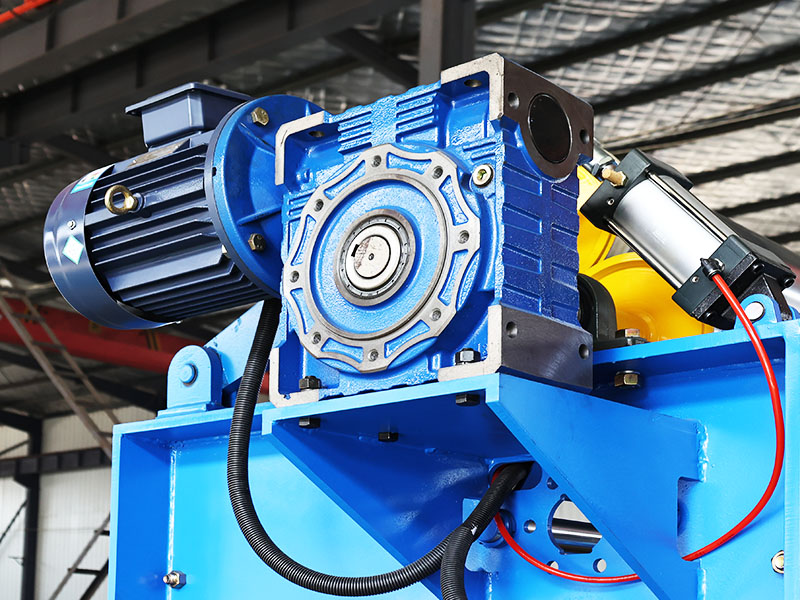

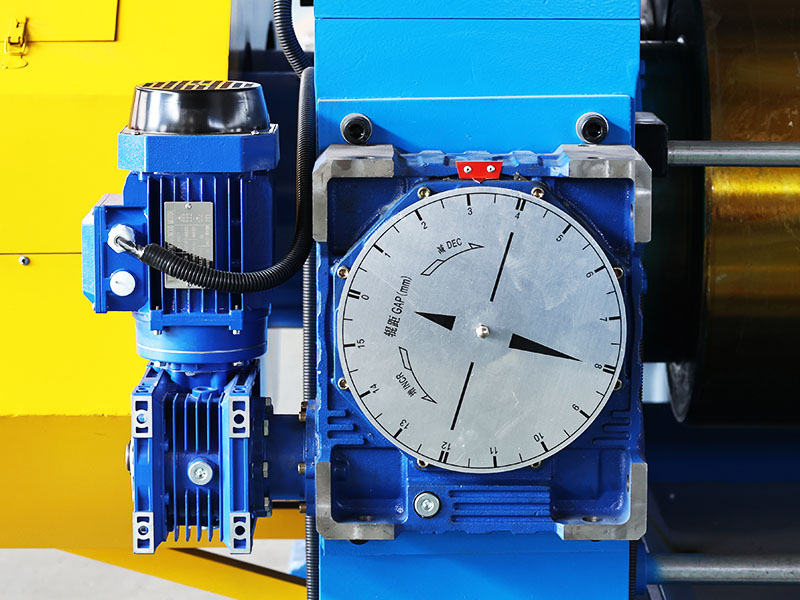

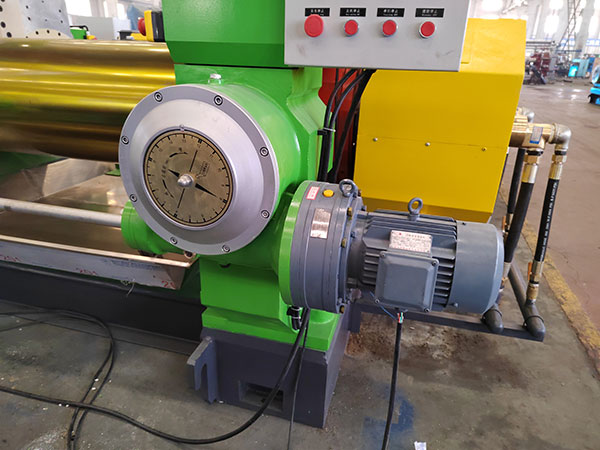

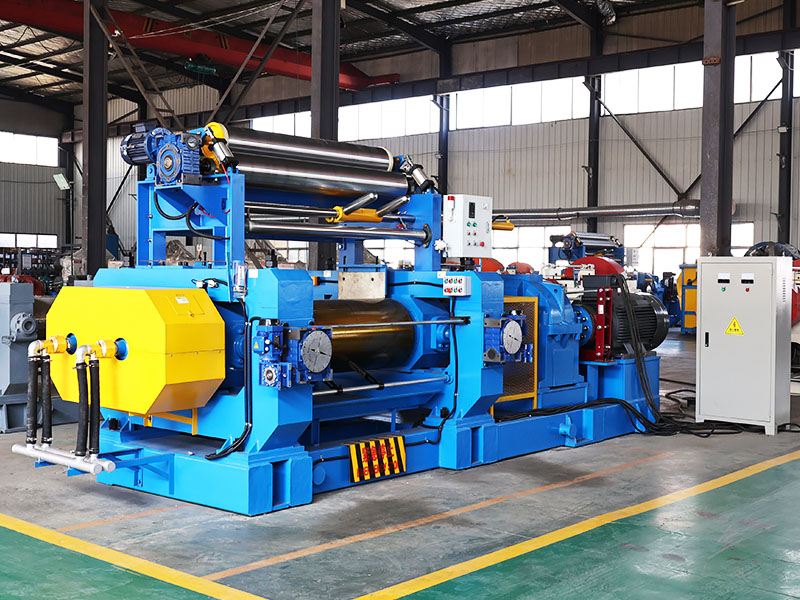

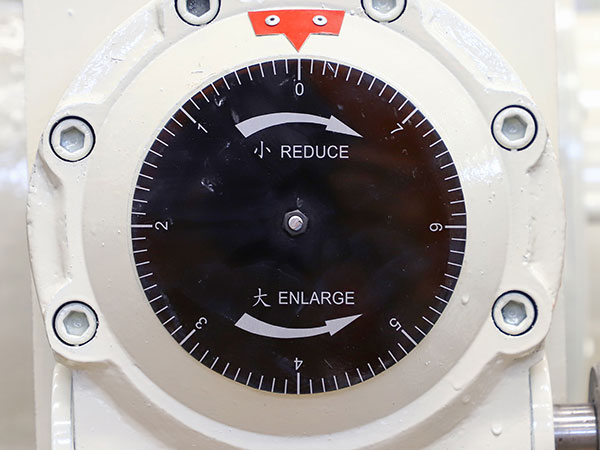

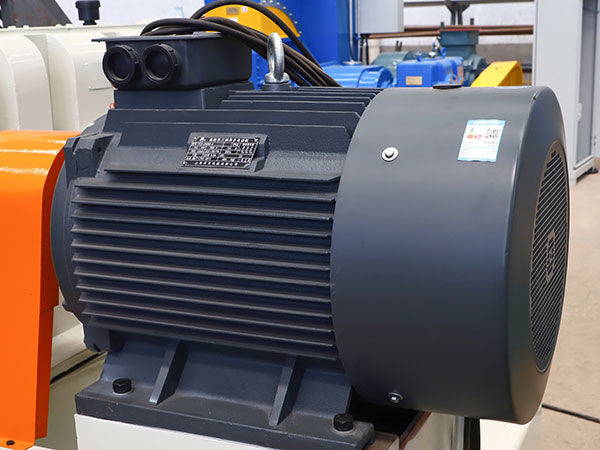

1. As an open type two roller mixing mill, it consists of a seat, frame, roller, driving gear, lubricating device, cooling and heating device, adjusting device of roller nip, safety brake, motor and reducer.

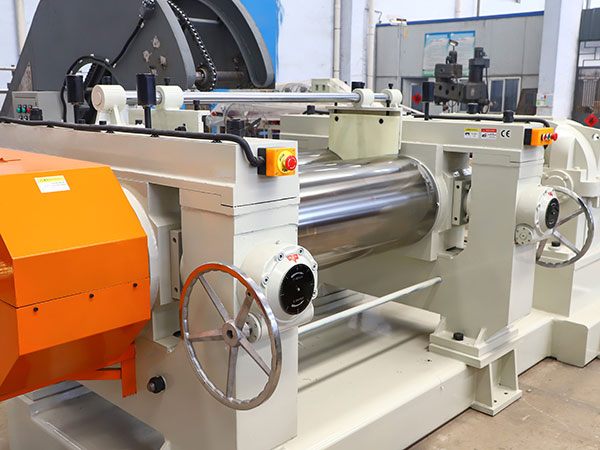

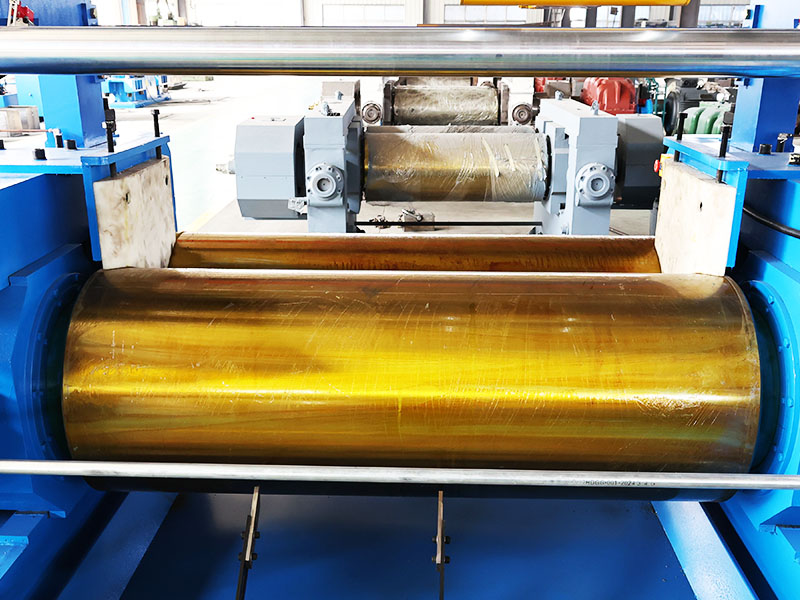

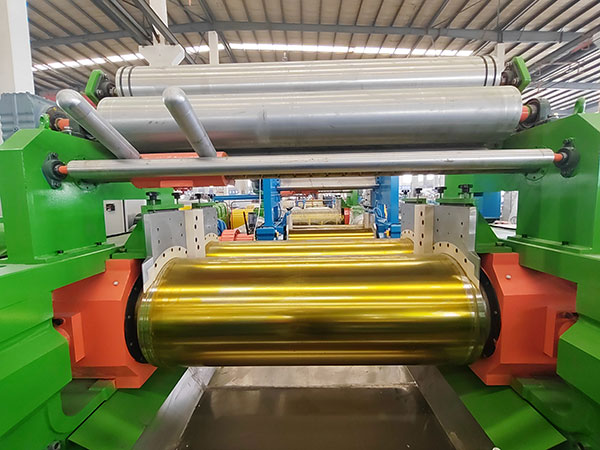

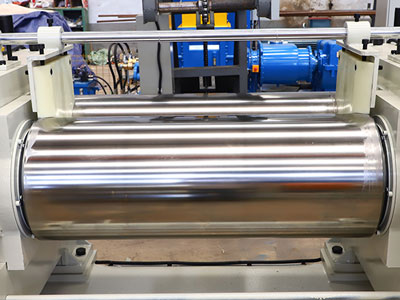

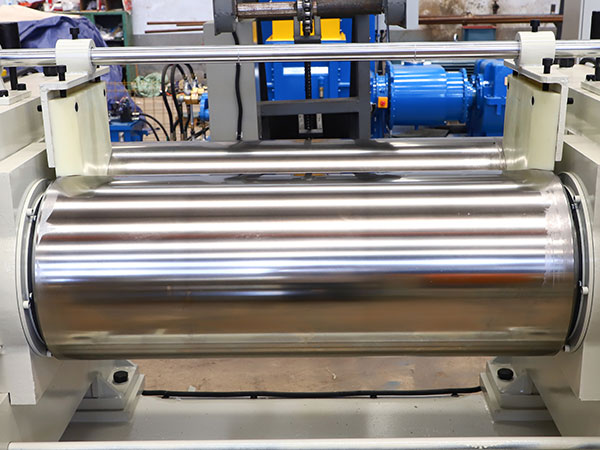

2. The polished roller, is made of chilled cast iron. Steam and cooling water can be injected in the empty roller to adjust the roller’s temperature. Two rollers rotate inversely with different speeds, so that rubber materials are drawn into the gap of the two rollers for processing.

Main Technical Parameters:
Type XK-150 XK-250 XK-300 XK-360 X(S)K-400 X(S)K-450 X(S)K-560
Working diameter of rolls (mm) Ø150 Ø250 Ø300 Ø360 Ø400 Ø450 Ø560
Working length of rolls (mm) 320 620 750 900 1000 1200 1530
Working linear speed of front roll(m/min) 8 15.1 15.1 16.25 18.65 24.5 27.7
Max gap (mm) 10 10 10 10 15 15 15
Capacity per batch(kg) 1-2 10-15 15-20 20-25 18-35 25-50 50-65
Driving motor power(kw) 7.5 18.5 22 30 37 55 95
Overall dimension (mm) L 1080 3400 3580 3940 4250 5200 6120
W 796 1350 1550 1780 1850 2380 2280
H 1415 1500 1695 1740 1870 1770 2000
Weight (kg) 1100 3500 5205 5670 7600 13000 22000
Notes Bearing Nylon bush grease LUB Copper sleeve oil LUB Nylon bush grease LUB
