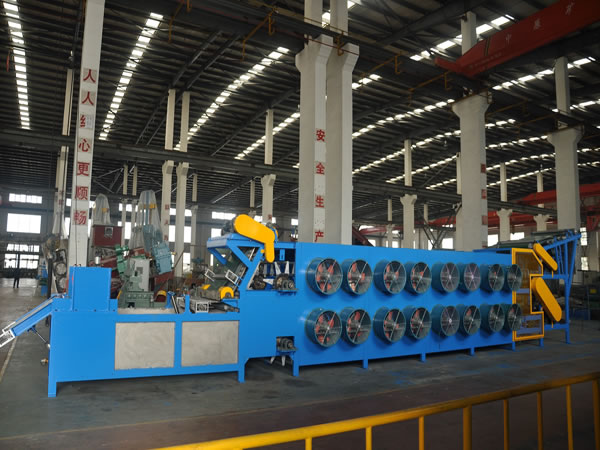

Batch-Off Cooler

Rubber Cooling Machine, Rubber Sheet Cooler, Rubber Cooler

Application:
The batch-off cooler is usually paired with internal mixers, rubber roll-head extruders or rubber sheeting mills. The rubber cooler dips rubber sheet in liquid where it is cooled and then dried. The sheets are then transported and piled on the batch-off cooler.

Main Technical Parameters:
Max. width of the sheet (MM) 900 600 800
Thickness of the rubber sheet(MM) 6-12 4-10 4-10
Conveying speed (M/MIN) 4-40 3-24 3-35
Max. pendant length of hanging sheet(MM) 1400 1400 1400
Number of cooling fans (Sets) 18-26 12 20-32
Temperature over room temperature after rubber sheet cooling ( ℃) 5 10 15
Swing sheet length(m) 1-1.3 1-1.3 1-1.3
Compressed air pressure 0.5-0.7 0.6-0.7 0.6-0.7
Total capacity of power supply 34--50 14 25-34
